Flexible LED wall washer light

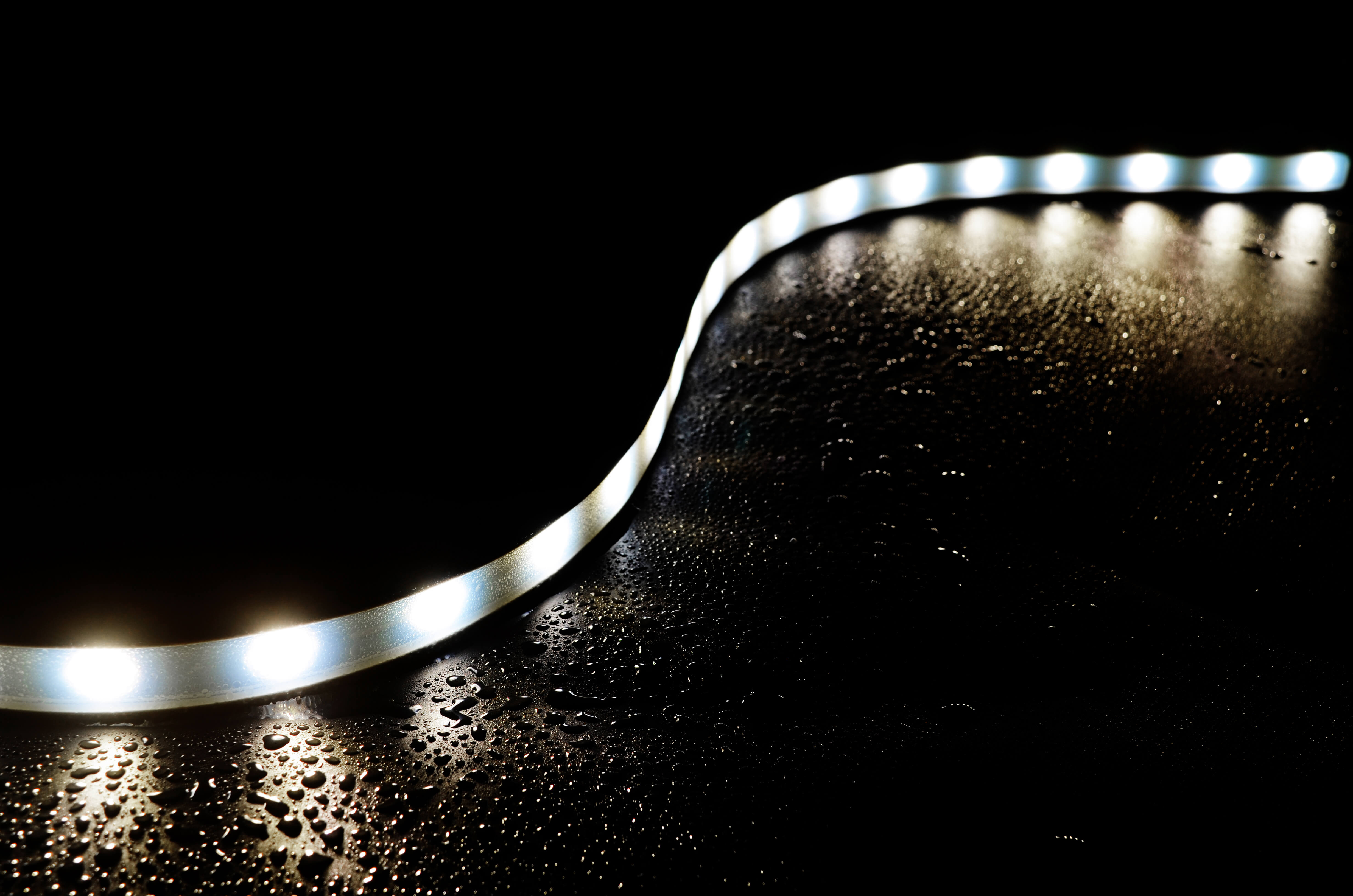

IP65 Free bending Silicone Flexible LED Wall Washer Lights
- LED Quantity:： 24pcs
- Beam Angle：： 15°/30°/50°/20*35°/18*20°/20*55°
- Colors:： 2700k/3000k/4000k/6000k/CCT/RGB/DMX RGB/DMX RGBW
- INQUIRY
IP65 Free bending Silicone Flexible LED Wall Washer Lights
*Using optical grade environmental protection silicone material
salt resistance, acid and alkali corrosion resistance, UV resistance
* The free bending structure design can perfectly fit the outdoor
curved surface of various arcs to achieve the eect of wall washing;
* Integrated extrusion molding process, waterproof grade up to IP65
* Patented optical structure design, a variety of angles optional
* Hidden end cap design, easy to install
Dimension
Technical Data
Mono Color DC24V
| Model | CCT | CRI(Ra) | LEDs/m | Power(w/m) | Lumen(lm/m) | Max.length(single feed) | Beam angle | cutting unit |
| MGS-WL2621Pro27 | 2700K | 80+ | 24pcs | 24w | 1525lm | 5m | 15°/30°/50°/20*35°/18*20°/20*55° | 250mm |
| MGS-WL2621Pro30 | 3000K | 80+ | 1580lm | |||||
| MGS-WL2621Pro40 | 4000K | 80+ | 1545lm | |||||
| MGS-WL2621Pro65 | 6500K | 80+ | 1480LM |
CCT Tunable white DC24V
| Model | CCT | CRI(Ra) | LEDs/m | Power(w/m) | Lumen(lm/m) | Max.length(single feed) | Beam angle | cutting unit |
| MGS-WL2621Pro-CCT | 2700K | 80+ | 24pcs | 12w | 850lm | 5m | 15°/30°/50°/20*35°/18*20°/20*55° | 250mm |
| 6500K | 80+ | 12w | 840lm | |||||
| 2700+6500K | / | 24w | 1600lm |
RGB DC24V
| Model | Color | CRI(Ra) | LEDs/m | Power(w/m) | Lumen(lm/m) | Max.length(single feed) | Beam angle | cutting unit | |
| MGS-WL2621Pro-RGB | R | / | 24pcs | 6w | 150lm | 5m | 15°/30°/50°/20*35°/18*20°/20*55° | 250mm | |
| G | 6w | 360lm | |||||||
| B | 6w | 65lm | |||||||
| RGB | 18w | 515lm | |||||||
DMX512 RGB DC24V
| Model | Color | IC model | LEDs/m | Power(w/m) | Lumen(lm/m) | Max.length(single feed) | Beam angle | cutting unit |
| MGS-WL2621Pro- DMX RGB | R | SM18522PH-4pixels/m | 24pcs | 6w | 150lm | 5m | 15°/30°/50°/20*35°/18*20°/20*55° | 250mm |
| G | 6w | 360lm | ||||||
| B | 6w | 65lm | ||||||
| RGB | 18w | 515lm |
RGBW DC24V
| Model | Color | CRI(Ra) | LEDs/m | Power(w/m) | Lumen(lm/m) | Max.length(single feed) | Beam angle | cutting unit | |
| MGS-WL2621Pro-RGBW | R | -- | 24pcs | 4.5w | 140lm | 5m | 35° / 30°x45° | 250mm | |
| G | -- | 4.5w | 340lm | ||||||
| B | -- | 4.5w | 64lm | ||||||
| W | 80 | 4.5w | 380lm | ||||||
| RGBW | -- | 18w | 850lm | ||||||
| Remarks: RGBW colors option: RGB+2700K/3000K/4000K/6000K | |||||||||
DMX512 RGBW DC24V
| Model | Color | IC model | LEDs/m | Power(w/m) | Lumen(lm/m) | Max.length(single feed) | Beam angle | cutting unit | |
| MGS-WL2621Pro-DMX RGBW | R | SM18522PH-4pixels/m | 24pcs | 5w | 135lm | 5m | 35° / 30°x45° | 250mm | |
| G | 5w | 330lm | |||||||
| B | 5w | 65lm | |||||||
| W | 5w | 356lm | |||||||
| RGBW | 18w | 833lm | |||||||
| Remarks: RGBW colors option: RGB+2700K/3000K/4000K/6000K | |||||||||
