COB LED strip
SPI pixel RGB COB LED strip
- SMD Type:： COB
- LED Quantity:： 840leds/meter
- Beam Angle：： 180°
- Working temperture:： -25℃~+45℃
- PCB Width(mm) :： 12mm
- IC mode:： WS2811
- Pixels:： 20 pixels /M
- INQUIRY
SPI pixel RGB COB LED strip
COB strip is a high-density led lighting strip made by COB encapsulation
No spot, no shadow, soft and uniform lighting.
SPI signal,brilliant colors , a variety of RGB mode settings, control 20pixels /meter ,it can achieve RGB chasing lighting effects by the controller
Linear LED strip and dot-free with large light-emitting angle
The largest emitting angle can reach to 180°
Can be cut,and be free to cut off and weld along with the above cutting line.
Technical Data
| SMD Type: | COB |
| LED Quantity | 840leds/meter |
| Beam Angle： | 180° |
| Working temperture: | -25℃~+45℃ |
| PCB Width(mm) : | 12mm |
| IC mode: | WS2811 |
| Pixels: | 20 pixels /M |

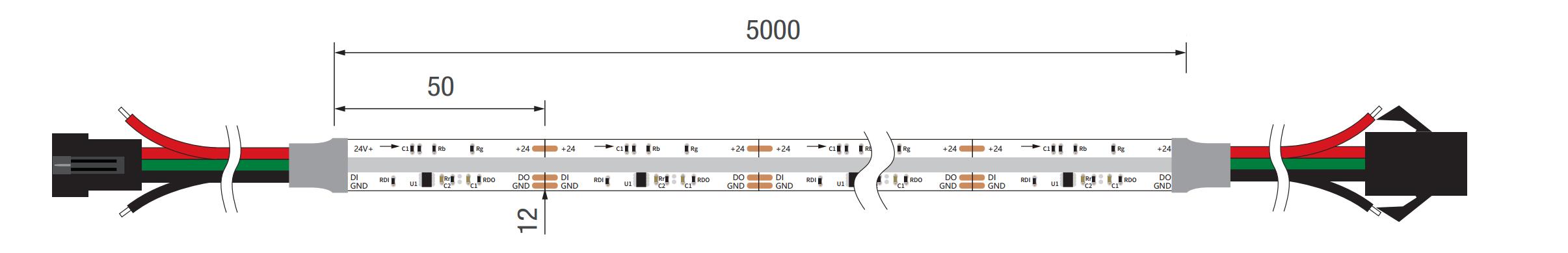

Dimension
Product parameter
Model: MGS-FLCOBQ840V24-DRGB
| Color | wavelength/CCT | Input volt. | LEDs/m | power/m | Lumen/m | Max.length (single feed) | Cutting unit |
| R | 620-630nm | DC24V | 840pcs | 8.4W | 160lm | 5m | 50mm |
| G | 520-530nm | DC24V | 8.4W | 630lm | 5m | 50mm | |
| B | 450-460nm | DC24V | 8.4W | 92lm | 5m | 50mm | |
| RGB | 450-460nm | DC24V | 22W | 815lm | 5m | 50mm |
Cable
