Embedded LED Neon Flex
Embedded LED Neon Flex sideview 6x12mm
- Cross section size： 6x12mm(WXH)
- Power/m： 10W
- Input Voltage： DC24V
- CRI： 90
- Bending direction： Horizontal bending
- IP grade： IP44
- INQUIRY
Embedded Silicone LED Neon Flex sideview 6x12mm
*IP44 Embedded FLEX LED NEON 0612, Cross section size 6mm x 12mm(W x H) ,which is horizontal bending

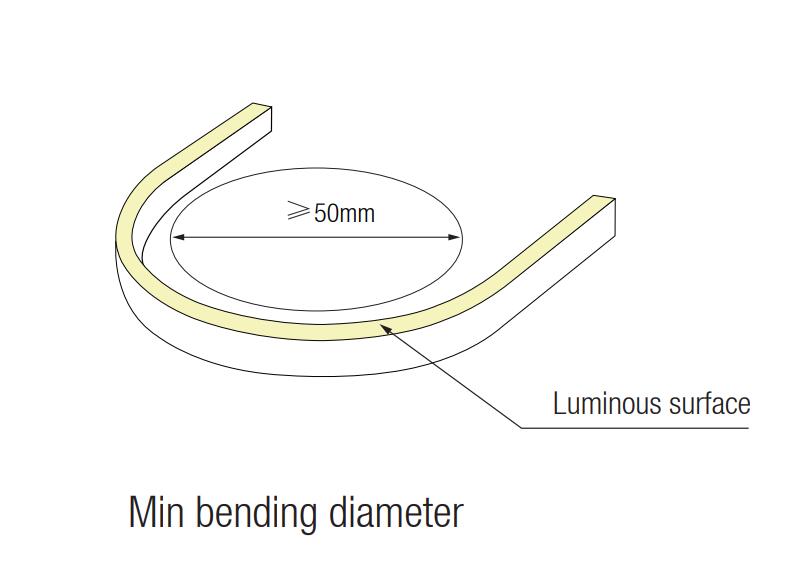

with min.bending diameter of 50mm
*Colors option: 2700K,3000K,4000k,6500K,Red,Green,Blue,Yellow,Pink , Orange,CCT,RGB
*IP44 protection level, salt solution resistance, acids & alkalis and UV resistance
*Excellent toughness, simple and stylish appearance, delicate and unique
Dimension
Technical Data
| Model | CCT/Color | Input voltage | Power/m | CRI | Lumen(LM/M) | Max.length (single feed) | Unit Cut |
| MGS-SV0612EN-2700K | 2700K±150K | DC24V | 10W | >90 | 520lm | 5m | 50mm |
| MGS-SV0612EN-3000K | 3000K±150K | DC24V | 10W | >90 | 550lm | 5m | 50mm |
| MGS-SV0612EN-4000K | 4000K±300K | DC24V | 10W | >90 | 600lm | 5m | 50mm |
| MGS-SV0612EN-6500K | 6500K±500K | DC24V | 10W | >90 | 550lm | 5m | 50mm |
| MGS-SV0612EN-RED | 620-625nm | DC24V | 10W | / | 210lm | 5m | 50mm |
| MGS-SV0612EN-GREEN | 515-525nm | DC24V | 10W | / | 550lm | 5m | 50mm |
| MGS-SV0612EN-BLUE | 460-465nm | DC24V | 10W | / | 110lm | 5m | 50mm |
| MGS-SV0612EN-YELLOW | 585-595nm | DC24V | 10W | / | 210lm | 5m | 50mm |
| MGS-SV0612EN-Pink | / | DC24V | 10W | / | 480lm | 5m | 50mm |
| MGS-SV0612EN-Orange | 600-610nm | DC24V | 10W | / | 200lm | 5m | 50mm |
| MGS-SV0612EN-CCT | 2700-6500K | DC24V | 10W | >90 | 580lm | 5m | 62.5mm |
| MGS-SV0612EN-RGB | RGB | DC24V | 10W | / | 220lm | 5m | 50mm |
