Top bend LED neon Flex

Silicone LED Neon Flex 30x20mm topview

Cross section size： 30x20mm(WXH)
Power/m： 16W,20W and 24W
Input Voltage： DC24V
CRI： 90
Bending direction： Vertical bending
IP grade： IP67
INQUIRY

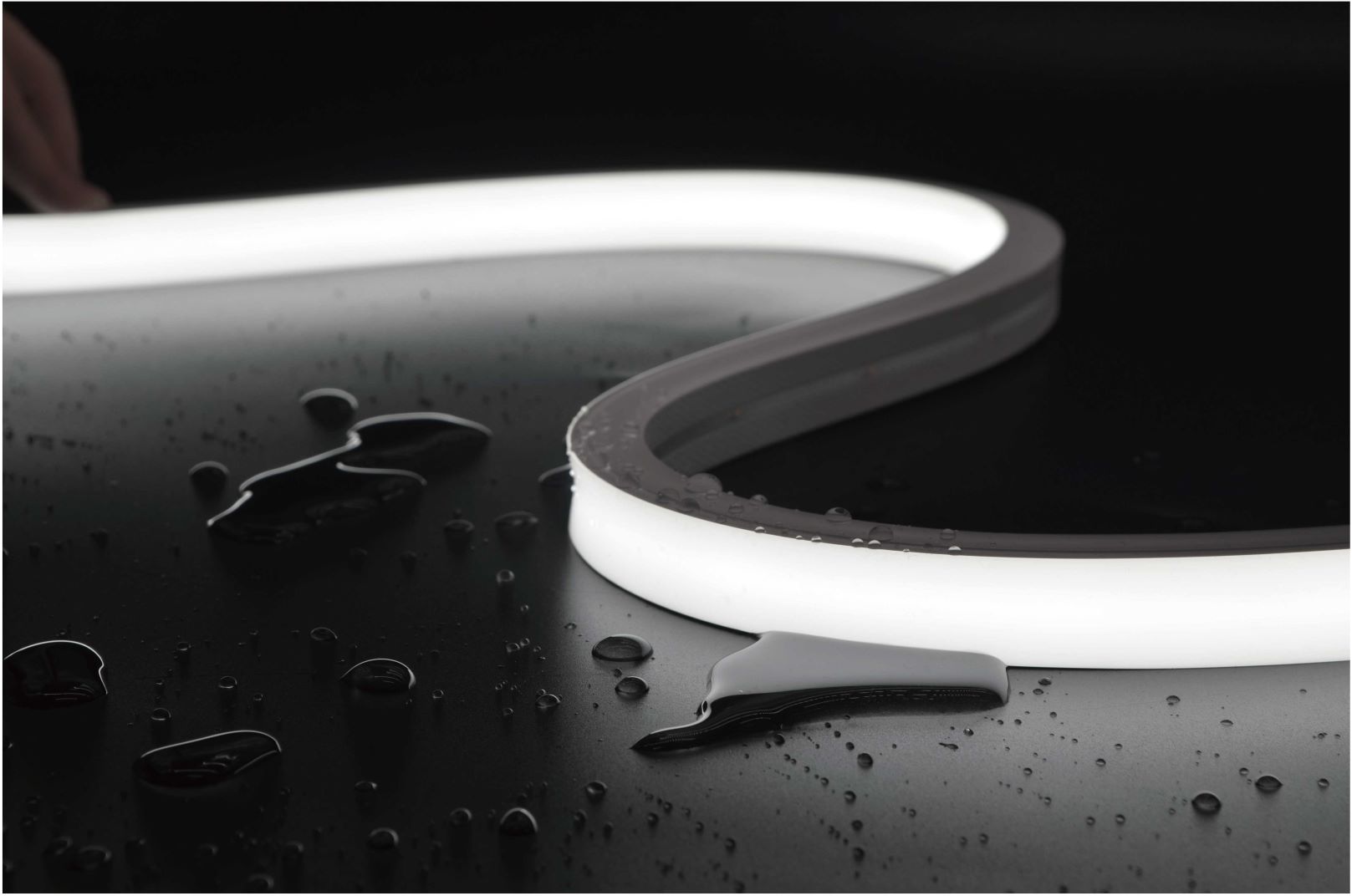

Silicone LED Neon Flex 30x20mm topview

*IP67 FLEX LEDNEON TP3020, Top bend, DC24V. Cross section size ,30mm x 20mm(W x H),

which is vertical bending with diameter of 300mm.

*Colors option:2100K,2400K,2700K,3000K,3500K,4000K,5000K,6000K,Red,Green,Blue,Yellow,Pink,

Orange,CCT, RGB and RGBW.

*It is IP67 protected, UV resistant, solvents resistant and saltwater resistant.

*Dot free will bring the most excellent performance for indoor & outdoor applications.

Dimension

Technical Data

Mono color (LM/M) DC24V

Model	Power/m	CRI	2700±100K	3000±100K	3500±200K	4000±300K	5000±300K	6000K	Max.length (single feed)	Unit Cut
MGS-TP302016W	16w	90+	991lm	1001lm	926lm	1050lm	1067lm	963lm	11m	50mm
MGS-TP302020W	20w	90+	1210lm	1222lm	1129lm	1280lm	1298lm	1176lm	9m	50mm
MGS-TP302024W	24w	90+	1426lm	1439lm	1333lm	1511lm	1534lm	1390lm	7m	50mm

Model	Power/m	CRI	Red	Green	Blue	Yellow	Pink	Orange	Max.length (single feed)	Unit Cut
MGS-TP302016W	16w	/	435lm	1071lm	222lm	353lm	431lm	431lm	11m	50mm
MGS-TP302020W	20w	/	530lm	1243lm	268lm	338lm	519lm	519lm	9m	50mm
MGS-TP302024W	24w	/	618lm	1445lm	314lm	368lm	613lm	613lm	7m	50mm

Note: -The max. length is based on Constant Current DC24V CC LED Strip,if constant voltage DC24V CV LED Strip. Max.length is 5meters power from single feed

CCT Tunable(LM/M) DC24V

Model	Power/m	CRI	2200K	6000K	2200+6000K	Max.length (single feed)	Unit Cut
MGS-TP302016W-CCT	16w	90+	500lm	528lm	1008lm	5m	41.66mm
MGS-TP302020W-CCT	20w	90+	609lm	651lm	1232lm	5m	41.66mm
MGS-TP302024W-CCT	24w	90+	722lm	769lm	1457lm	5m	41.66mm

RGB(LM/M) DC24V

Model	Power/m	Red	Green	Blue	RGB	Max.length (single feed)	Unit Cut
MGS-TP302016W-RGB	16w	108lm	305lm	56lm	461lm	5m	41.66mm
MGS-TP302020W-RGB	20w	133lm	354lm	69lm	536lm	5m	41.66mm
MGS-TP302024W-RGB	24w	158lm	400lm	78lm	614lm	5m	41.66mm

RGBW(LM/M) DC24V

Model	Power/m	RGB+2700K	RGB+3000K	RGB+4000K	RGB+6000K	Max.length (single feed)	Unit Cut
MGS-TP302016W-RGBW	16w	589lm	608lm	589lm	591lm	5m	41.66mm
MGS-TP302020W-RGBW	20w	718lm	741lm	724lm	720lm	5m	41.66mm
MGS-TP302024W-RGBW	24w	837lm	863lm	840lm	841lm	5m	41.66mm
