Wide Body COB LED Strip
15mm Wide Body COB LED Strip

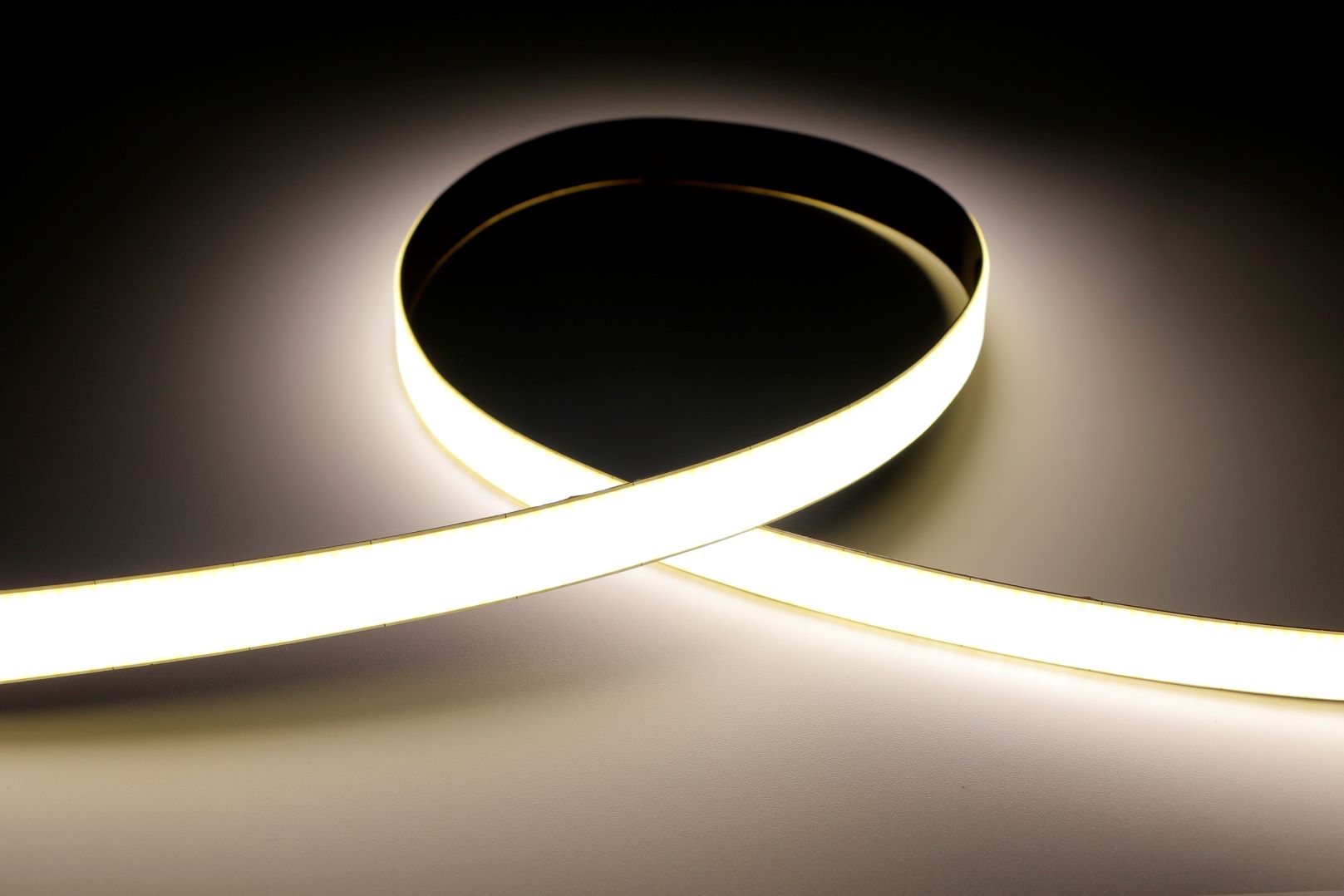

15mm Wide Body COB LED strip
Big 20mm Wide body lighting surface, the light efficiency per meter can reach 110~130Lm/W
180° illumination angle, high CRI>90
No spot, no shadow, soft and uniform lighting.
Color options: 2700K,3000K ,4000K and 6000K. R/G/B. Other colors can be customized produced
Dimension
Technical Data
| Product model : | MGS-FLCOBW15V24 (COB1920LEDs-DC24V-15MM) | ||||||
| Input voltage: | 24V | Lumen(±5%) | 2750-3200LM/M | ||||
| CRI(Ra): | COB | Efficiency(±5%): | 110-130LM/W | ||||
| LED Quantity | 1920leds/meter | Power/m: | 25W/M | ||||
| Beam Angle： | 180° | PCB Width(mm) : | 15mm | ||||
| Color: | 2700K/3000K/4000K/6000K/R/G/B | CRI: | >90 | ||||
| Working environment: | -25℃~+45℃ | IP Grade | IP20 | ||||
| Max connection Length: | 5m | Cut distance: | 20.67mm | ||||
