Side bend LED neon Flex
Silicone LED Neon Flex sideview 4x8mm
- Cross section size： 4x8mm(WXH)
- Power/m： 6W
- Input Voltage： DC24V
- CRI： 90
- Bending direction： Horizontal bending
- IP grade： IP67
- INQUIRY
Silicone LED Neon Flex sideview Mini 4x8mm
*IP67 FLEX LEDNEON mini size 4x8mm. Cross section size4mm x 8mm(W x H) ,which is horizontal bending with
min.bending diameter of 30mm
*Colors option: 2100,2400k 2700K,3000K,3500K,4200K,5300K,Red,Green,Blue,Yellow,Orange
*It is IP67 protected, silicone material,UV resistant, solvents resistant and saltwater resistant.
Dot free will bring the most excellent performance for indoor & outdoor applications.

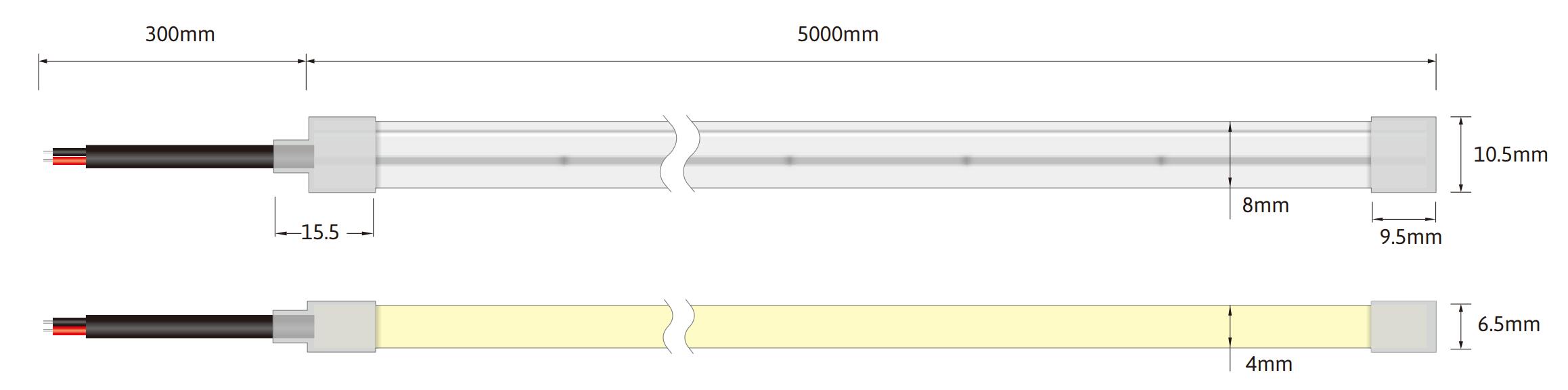

Dimension
Technical Data
| Model | CCT/Color | Input voltage | Power/m | CRI | Lumen(LM/M) | Max.length (single feed) | Unit Cut |
| MGS-SV040806W-2100K | 2000-2300K | DC24V | 6W | 90+ | 199lm | 5m | 25mm |
| MGS-SV040806W-2400K | 2300-2600K | DC24V | 6W | 90+ | 212lm | 5m | 25mm |
| MGS-SV040806W-2600K | 2400-2800K | DC24V | 6W | 90+ | 219lm | 5m | 25mm |
| MGS-SV040806W-3000K | 2800-3300K | DC24V | 6W | 90+ | 253lm | 5m | 25mm |
| MGS-SV040806W-3500K | 3200-3900K | DC24V | 6W | 90+ | 223lm | 5m | 25mm |
| MGS-SV040806W-4200K | 3900-4600K | DC24V | 6W | 90+ | 214lm | 5m | 25mm |
| MGS-SV040806W-5300K | 5000-5700K | DC24V | 6W | 90+ | 221lm | 5m | 25mm |
| MGS-SV040806W-R | 620-630nm | DC24V | 6W | / | 27lm | 5m | 25mm |
| MGS-SV040806W-G | 520-530nm | DC24V | 6W | / | 240lm | 5m | 25mm |
| MGS-SV040806W-B | 460-470nm | DC24V | 6W | / | 42lm | 5m | 25mm |
| MGS-SV040806W-Y | 580-590nm | DC24V | 6W | / | 66lm | 5m | 25mm |
| MGS-SV040806W-O | 600-610nm | DC24V | 6W | / | 30lm | 5m | 25mm |
Cable entry
Mounting Accessory
