Side bend LED neon Flex

Silicone LED Neon Flex sideview 10x10mm

Cross section size： 10x10mm(WXH)
Power/m： 5W and 10W
Input Voltage： DC24V
CRI： 90
Bending direction： Horizontal bending
IP grade： IP67
INQUIRY

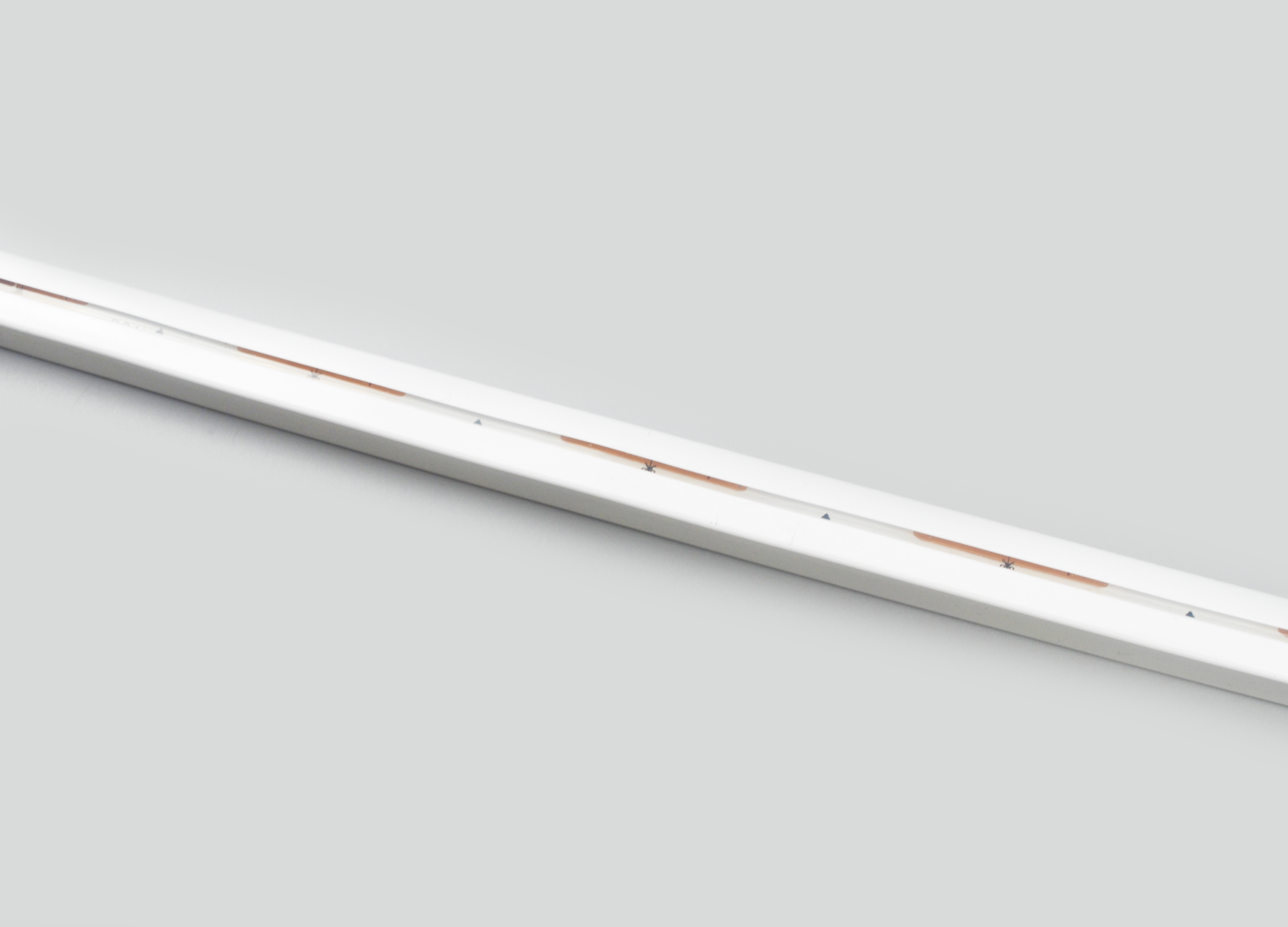

Silicone LED Neon Flex sideview 10x10mm

Features

*IP67 FLEX LEDNEON SV1010, Side Bend, DC24V. Cross section size 10mm x 10mm(W x H), which is vertical bending with diameter of 100mm.Bend horizontal only

*Colors option:2100K,2400K,2700K,3000K,3500K,4000K,5000K,6000K,Red,Green,Blue,Yellow,Pink,Orange

*It is IP67 protected, UV resistant, solvents resistant and saltwater resistant.

*Dot free will bring the most excellent performance for indoor & outdoor applications.

Dimension

Technical Data

Mono color (LM/M) DC24V

Model	Power/m	CRI	2700±100K	3000±100K	3500±200K	4000±300K	5000±300K	6000K	Max.length (single feed)	Unit Cut
MGS-SV101005W	5w	90+	298lm	322lm	306lm	349lm	346lm	356lm	5m	35.7mm
MGS-SV101010W	10w	90+	571m	623lm	593lm	660lm	677lm	690lm	5m	35.7mm

Model	Power/m	CRI	Red	Green	Blue	Yellow	Pink	Orange	Max.length (single feed)	Unit Cut
MGS-SV101005W	5w	/	140lm	276lm	71lm	127lm	232lm	130lm	5m	35.7mm
MGS-SV101010W	10w	/	275lm	540lm	131lm	246lm	452lm	240lm	5m	35.7mm
