Side bend LED neon Flex

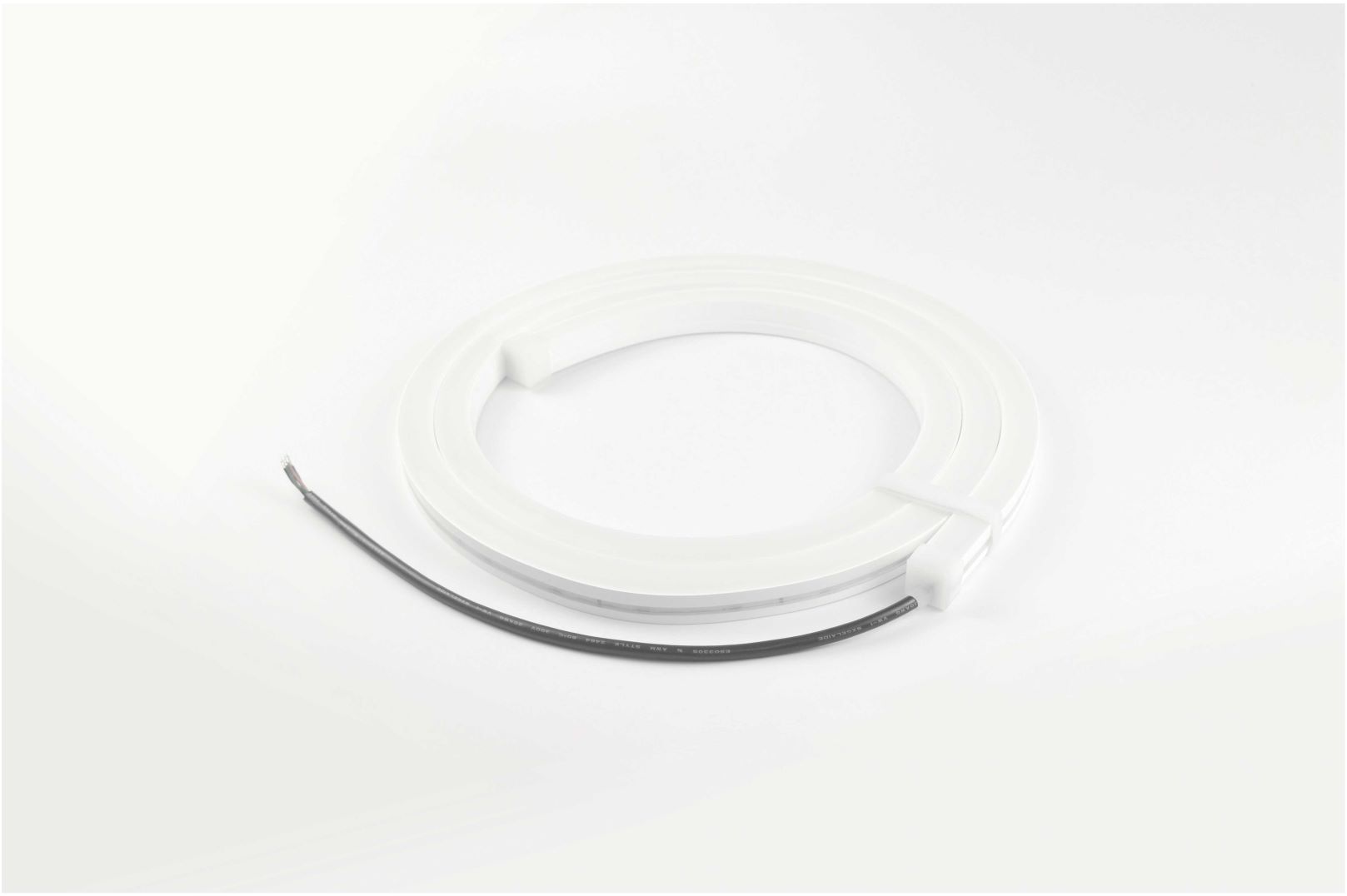

Silicone LED Neon Flex sideview 16x15mm

Cross section size： 16x15mm(WXH)
Power/m： 5W,10W and 15W
Input Voltage： DC24V
CRI： 90
Bending direction： Horizontal bending
IP grade： IP67
INQUIRY

Silicone LED Neon Flex sideview 16x15mm

*IP67 FLEX LEDNEON 1615, Cross section size 16mm x 15mm(W x H) ,which is horizontal bending

with min.bending diameter of 200mm

*Colors option: 2100,2400k,2700K,3000K,3500K,4000k,5000K,6000K,Red,Green,Blue,Yellow,Pink

and Orange,CCT,RGB and RGBW

*It is IP67 protected, silicone material,UV resistant, solvents resistant and saltwater resistant.

*Dot free will bring the most excellent performance for indoor & outdoor applications.

Dimension


Technical Data

Mono color (LM/M) DC24V

Model	Power/m	CRI(Ra)	2700K	3000K	3500K	4000K	5000K	6000K	Max.length (single feed)	Unit Cut
MGS-SV161505W	5w	90+	340lm	350lm	345lm	380lm	390lm	385lm	25m	50mm
MGS-SV161510W	10w	90+	640lm	670lm	650lm	730lm	750lm	730lm	17m	50mm
MGS-SV161515W	15w	90+	915lm	960lm	930lm	1050lm	1080lm	1050lm	12m	50mm

Model	Power/m	CRI(Ra)	RED	GREEN	BLUE	YELLOW	Pink	Orange	Max.length (single feed)	Unit Cut
MGS-SV161505W	5w	/	160lm	300lm	75lm	160lm	260lm	130lm	25m(R/Y/O:33m)	50mm
MGS-SV161510W	10w	/	310lm	580lm	140lm	310lm	500lm	240lm	17m(R/Y/O:18m)	50mm
MGS-SV161515W	15w		435lm	825lm	130lm	450lm	720lm	340lm	12m	50mm

Note: -The max. length is based on Constant Current DC24V CC LED Strip,if constant voltage DC24V CV LED Strip. Max.length is 5meters power from single feed

CCT Tunable(LM/M) DC24V

Model	Power/m	CRI(Ra)	2700K	6000K	2700+6000K	Max.length (single feed)	Unit Cut
MGS-SV161505W-CCT	5w	90+	180lm	185lm	370lm	5m	50mm
MGS-SV161510W-CCT	10w	90+	350lm	355lm	710lm	5m	50mm
MMGS-SV161515W-CCT	15w	90+	510lm	525lm	1035lm	5m	50mm

RGB(LM/M) DC24V

Model	Power/m	R	G	B	RGB	Max.length (single feed)	Unit Cut
MGS-SV161505W-RGB	5w	43lm	115lm	28m	185lm	5m	62.5mm
MGS-SV161510W-RGB	10w	76lm	192lm	37lm	310lm	5m	62.5mm
MGS-SV161515W-RGB	15w	105lm	270lm	76lm	450lm	5m	62.5mm

RGBW(LM/M) DC24V

Model	Power/m	RGB+2700K	RGB+3000K	RGB+4000K	RGB+6000K	Max.length (single feed)	Unit Cut
MGS-SV101805W-RGBW	5w	250lm	270lm	300m	300m	5m	83.3mm
MGS-SV101810W-RGBW	10w	500lm	520lm	550lm	550lm	5m	83.3mm
MGS-SV101811W-RGBW	15w	730lm	750lm	780lm	780lm	5m	83.3mm
