Top bend LED neon Flex
Silicone LED Neon Flex 12x12mm topview
- Cross section size： 12x12mm(WXH)
- Power/m： 5W and 10W
- Input Voltage： DC24V
- CRI： 90
- Bending direction： Vertical bending
- IP grade： IP67
- INQUIRY

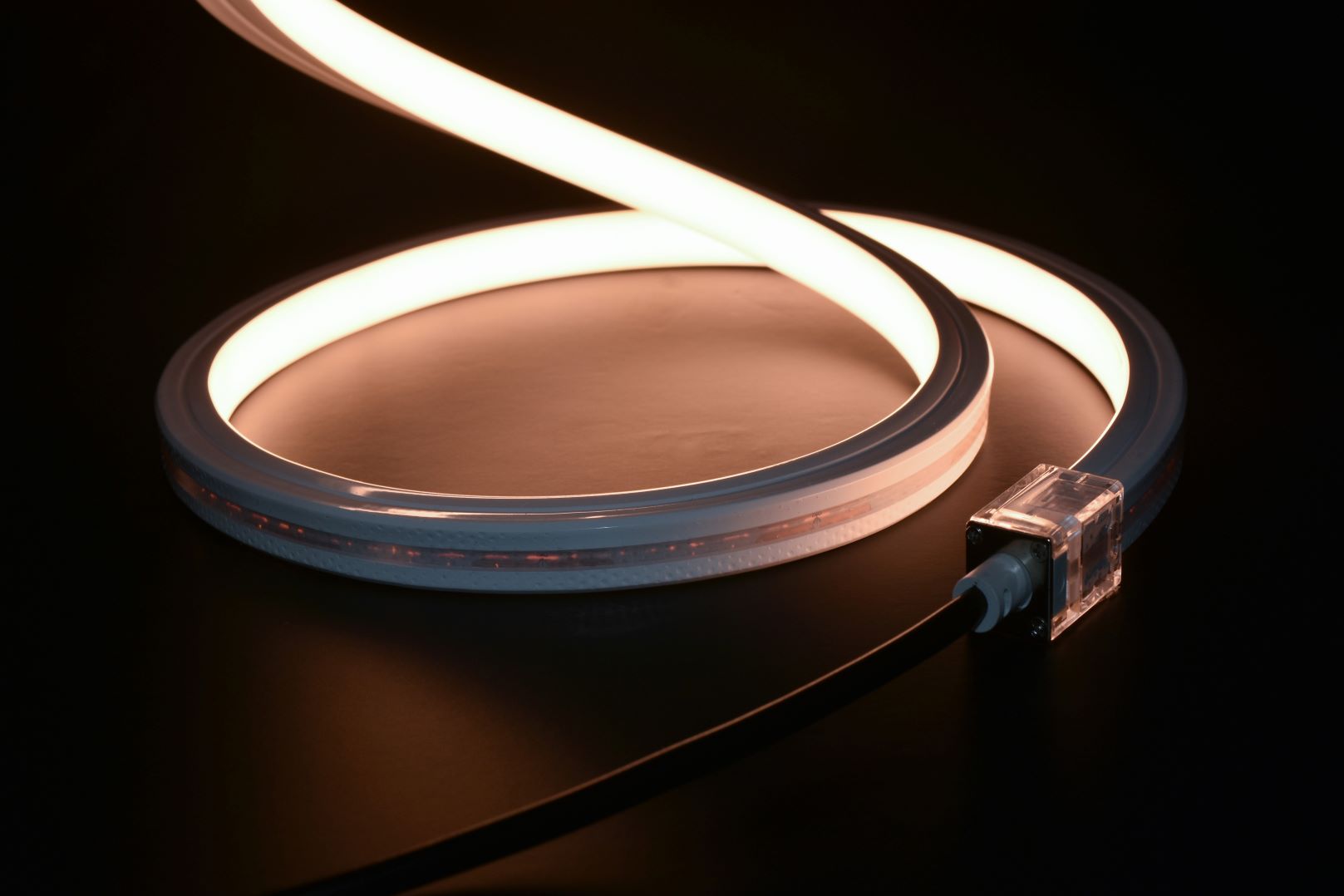

Silicone LED Neon Flex 12x12mm Topview
*IP67 FLEX LEDNEON TP1212, Top Bend, DC24V. Cross section size 12mm x 12mm(W x H)
which is vertical bending with diameter of 150mm.
*Colors option: 2100K,2400K,2700K,3000K,3500K,4000K,5000K,6000K,Red,Green,Blue,Yellow,
Pink,Orange,CCT, RGB.
*It is IP67 protected, UV resistant, solvents resistant and saltwater resistant.
*Dot free will bring the most excellent performance for indoor & outdoor applications.
Dimension
Technical Data
Mono color (LM/M) DC24V
| Model | Power/m | CRI | 2700±100K | 3000±100K | 3500±200K | 4000±300K | 5000±300K | 6000K | Max.length (single feed) | Unit Cut |
| MGS-TP121205W | 5w | 90+ | 349lm | 329lm | 355lm | 347lm | 347lm | 336lm | 17m | 50mm |
| MGS-TP121210W | 10w | 90+ | 668lm | 639lm | 662lm | 677lm | 682lm | 662lm | 8m | 50mm |
| Model | Power/m | CRI | Red | Green | Blue | Yellow | Pink | Orange | Max.length (single feed) | Unit Cut |
| MGS-TP121205W | 5w | / | 133lm | 374lm | 70lm | 28lm | 143lm | 115lm | 25m(G/B:17m) | 50mm |
| MGS-TP121210W | 10w | / | 277lm | 703lm | 129lm | 51lm | 278lm | 230lm | 17m(G/B:8m) | 50mm |
Mono color high lighting efficacy series (LM/M) DC24V
| Model | Power/m | CRI | 2700±100K | 3000±100K | 3500±200K | 4000±300K | 5000±300K | 6000K | Max.length (single feed) | Unit Cut |
| MGS-TP1212H05W | 5w | 90+ | 420lm | 450lm | 480lm | 475lm | 475lm | 480lm | 14m | 50mm |
| MGS-TP1212H10W | 10w | 90+ | 820lm | 880lm | 950lm | 930lm | 940lm | 950lm | 8m | 50mm |
Note: -The max. length is based on Constant Current 24Vdc LED Strip,if constant voltage 24Vdc LED Strip. Max.length is 5meters power from single feed
When use the solder free end cap or waterproof connector,the max run length of 5W/M,10W/M and 15W/M is respectively 24M,12M and 8M.
CCT Tunable(LM/M) DC24V
| Model | Power/m | CRI | 2700K | 6000K | 2700+6000K | Max.length (single feed) | Unit Cut | |||
| MGS-TP121205W-CCT | 5w | 90+ | 151lm | 161lm | 316lm | 5m | 50mm | |||
| MGS-TP121210W-CCT | 10w | 90+ | 315lm | 336lm | 646lm | 5m | 50mm | |||
RGB(LM/M) DC24V
| Model | Power/m | R | G | B | RGB | Max.length (single feed) | Unit Cut | |||
| MGS-TP121205W-RGB | 5w | 34lm | 111lm | 20lm | 174lm | 5m | 62.5mm | |||
| MGS-TP121210W-RGB | 10w | 69lm | 214lm | 40lm | 288lm | 5m | 62.5mm | |||
Cable entry
Mounting Accessory
