Top bend LED neon Flex

Silicone LED Neon Flex 20x16mm topview

Cross section size： 20x16mm(WXH)
Power/m： 5W,10W and 15W
Input Voltage： DC24V
CRI： 90
Bending direction： Vertical bending
IP grade： IP67
INQUIRY

Silicone LED Neon Flex 20x16mm topview

*IP67 FLEX LEDNEON TP2016, Top Bend, DC24V. Cross section size 20mm x 16mm(W x H),

which is vertical bending with diameter of 200mm.

*Colors option: 2100K,2400K,2700K,3000K,3500K,4000K,5000K,6000K,Red,Green,Blue,Yellow,Pink,

Orange,CCT, RGB and RGBW.

*It is IP67 protected, UV resistant, solvents resistant and saltwater resistant.

*Dot free will bring the most excellent performance for indoor & outdoor applications.

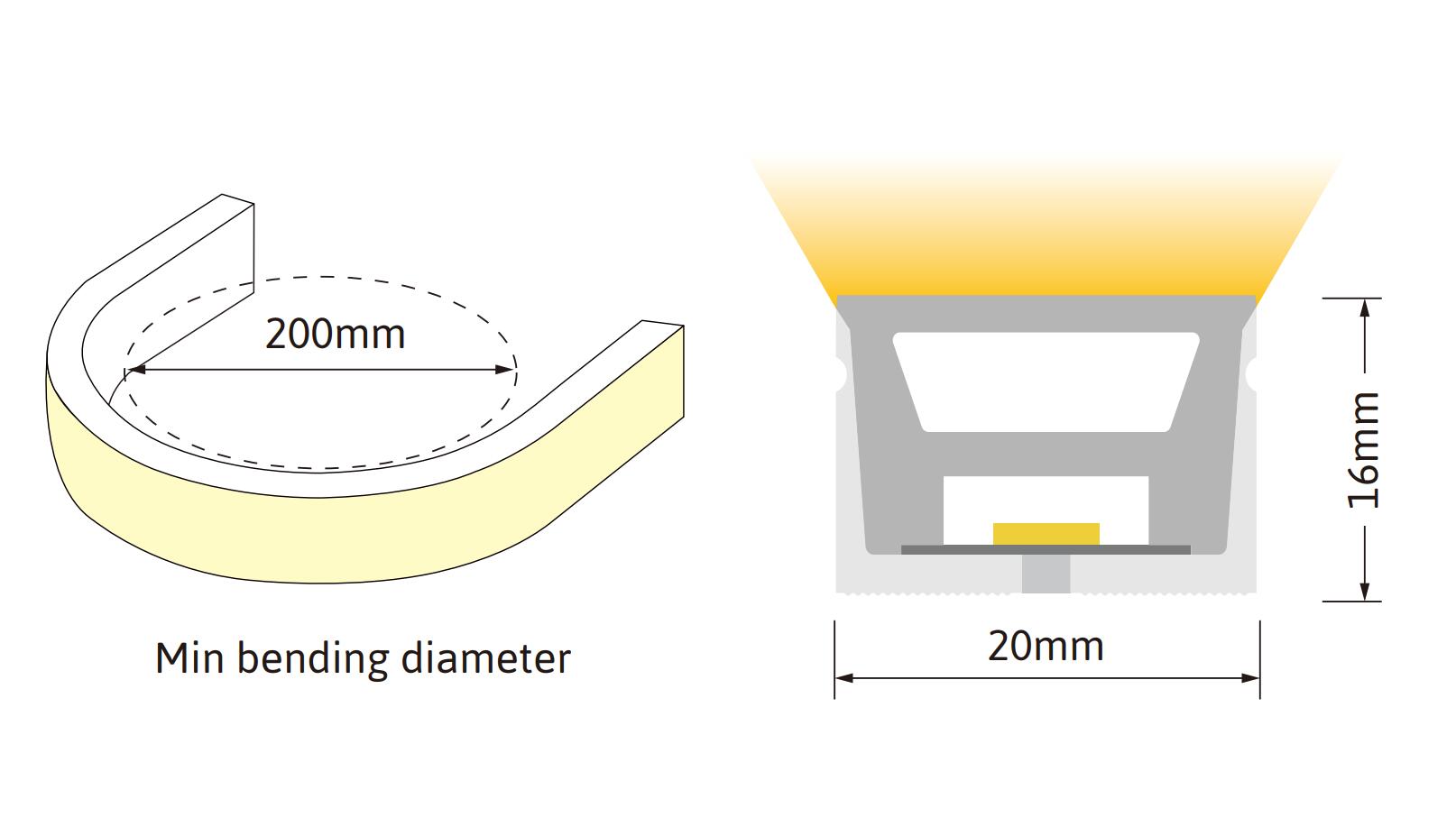

Dimension

Technical Data

Mono color (LM/M) DC24V

Model	Power/m	CRI	2700±100K	3000±100K	3500±200K	4000±300K	5000±300K	6000K	Max.length (single feed)	Unit Cut
MGS-TP201605W	5w	90+	305lm	305lm	288lm	325lm	323lm	323lm	27m	50mm
MGS-TP201610W	10w	90+	590lm	590lm	555lm	630lm	625lm	625lm	17m	50mm
MGS-TP201615W	15w	90+	855lm	855lm	803lm	915lm	908lm	908lm	12m	50mm

Model	Power/m	CRI	Red	Green	Blue	Yellow	Pink	Orange	Max.length (single feed)	Unit Cut
MGS-TP201605W	5w	/	155lm	315lm	78lm	150lm	140lm	125lm	27m(R/Y/O:35m)	50mm
MGS-TP201610W	10w	/	290lm	610lm	135lm	280lm	260lm	230lm	17m(R/Y/O:18m)	50mm
MGS-TP201615W	15w	/	405lm	885lm	173lm	390lm	360lm	315lm	12m	50mm

Note: 1.The max. length is based on Constant Current DC24V CC LED Strip,if constant voltage DC24V CV LED Strip. Max.length is 5meters power from single feed

2.When use the solder free end cap or waterproof connector,the max run length of 5W/M,10W/M and 15W/M is respectively 24M,12M and 8M.

CCT Tunable(LM/M) DC24V
